Node-Red configurable trigger times

-

I've recently moved from fixed trigger times for certain (mostly lighting) events to user-configurable. This provides me an easy way to configure via a Home Assistant dashboard.

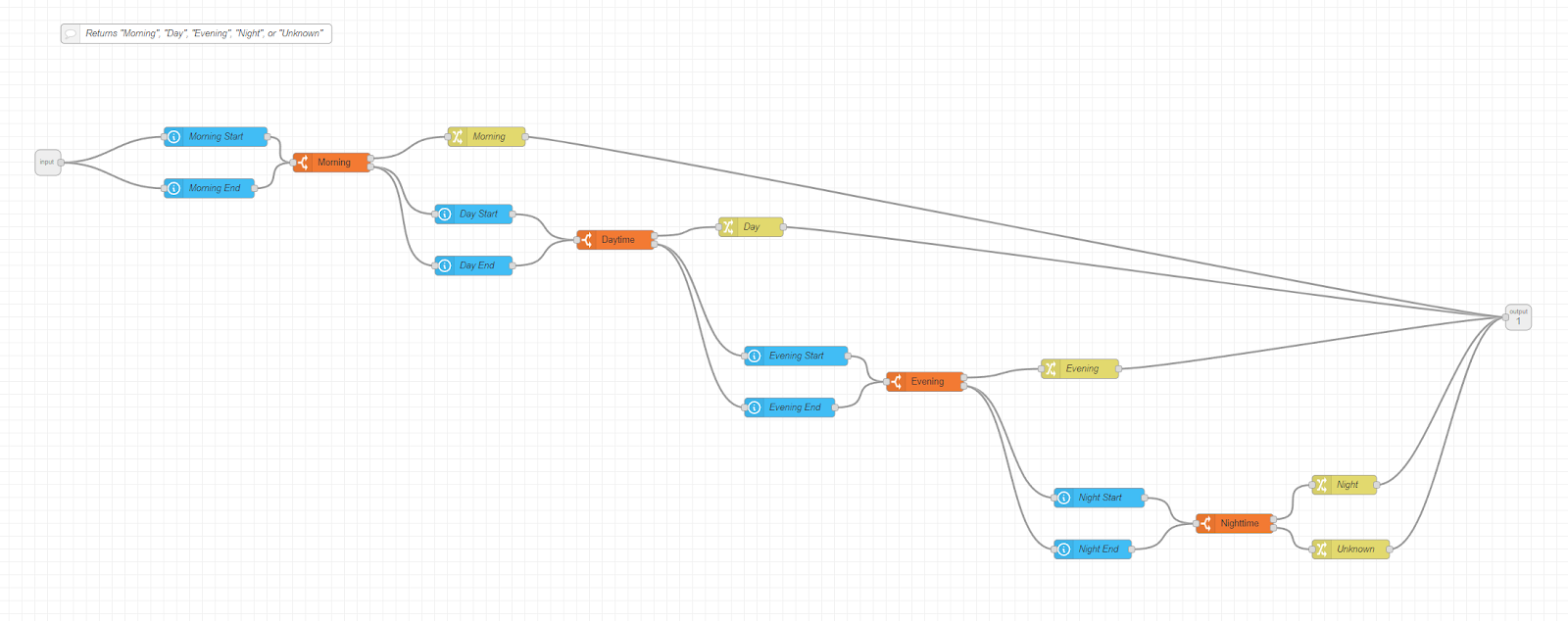

This is achieved by the use of some helpers and a simple node-red subflow:


The subflow code can be downloaded here for import into your node-red instance.

The subflow outputs one of the following values:
  • Morning
  • Day
  • Evening
  • Night
  • Unknown (if no matching timeframe is found)
Based on matching the helper values in a cascade of time_range nodes in the subflow.

To use it you'll need to create "time" helpers with the following entity ids:

input_datetime.morning_start
input_datetime.morning_end
input_datetime.day_start
input_datetime.day_end
input_datetime.evening_start
input_datetime.evening_end
input_datetime.night_start
input_datetime.night_end

which can then be added to a dashboard for easy editing.
